1966 BARRACUDA RESTORATION
(Restoring to Operating Condition)

VIN-BP29D 62 625114

Radiator Top Tank, Front Oblique
This is the classic MOPAR round radiator top tank from the early sixties shown from the top front oblique. For the 273 cu. in. V-8 with A/C, the radiator inlet connected just a little to the driver's side of the top tank. However, the far passinger side of the tank had a flat area where a connection could have been made for other applications. This original radiator is number 2582975. The still damp fresh paint from the raidator repair shop stuck to the newspaper I placed it on in the back of the van.

Radiator Engine Side
This shows the full engine side of the radiator. The inlet fitting at the top, slightly toward the driver's side. The outlet fitting in the bottom tank far on the driver's side. They are about 1 1/2" O.D. Some time after 1966, Chrysler changed the small block water pumps to suck water from the passenger's side and, of course the radiator outlet fitting was also moved to the passenger side. The transmission cooler fittings have flairs on the line side and appear to be pipe thread going into the bottom tank. The 1/2" wrench fits the fittings and a 5/8" fits the flair nuts on the transmission cooler lines. The radiator drain fitting doesn't have a drain hose attachment.

The radiator mounting bracket holes are elongated to allow for some missalignment. They are about 24 1/2" center to center from side to side and the driver's side holes are about 11 1/2" apart vertically. On the passenger side, they're about 12 1/2" apart. The bottom holes are open to make removal and installation easier; you don't have to completely remove those bottom bolts.

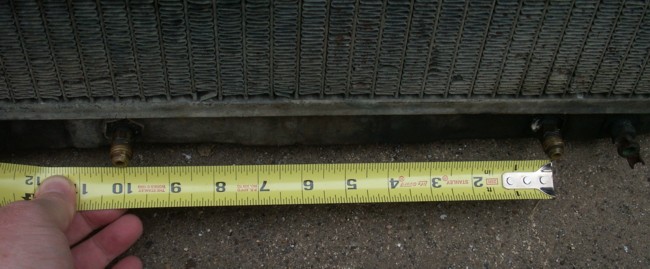

Transmission Cooler Fittings
The transmission cooler fittings are about 10" on centers.

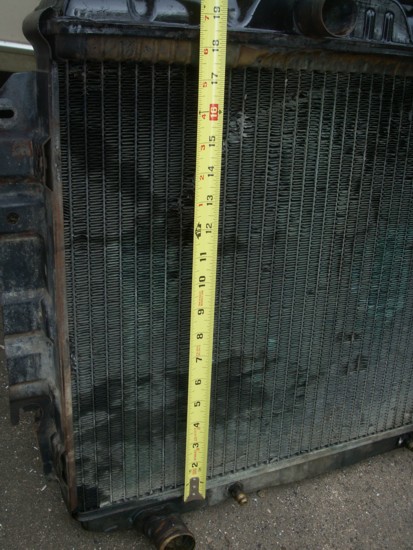

Radiator Core Height
The core is about 18 1/2" high. Note that the top flange (or whatever it's called) of the core actually forms a part of the top tank reservoir.

Radiator Core Thickness
The core has THREE rows of tubes to provide additional cooling to overcome the air conditioner heat load. It's about 2 1/4" thick.

Radiator Core Top
This photo shows how the top of the core forms part of the top tank water reservoir. All that extra volume allows room for the thermal expansion of the coolant as it gets hot. There is a circular indention at the center to provide clearance for the fan and fan shroud.

Fan Shroud Connection
Four small metal brackets connect the fan shroud to the radiator mounting bracket. Tabs on the fan shroud brackets are inserted into slots in the radiator mounting brackets and then are secured with 1/4-20 bolts into captive nuts in the mounting bracket. The centerlines of the captive nuts are about 11 3/4" apart vertically.

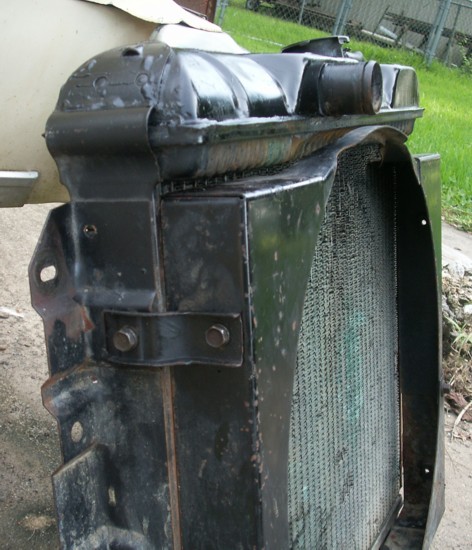

Fan Shroud Attachment
This photo shows how the top of the fan shroud fits into the circular space in the top of the core and how the attachment brackets attach to the radiator and shroud.
