1966 Barracuda

Alternator and Voltage Regulator Wiring


Positive battery terminal.
Alternor wiring starts at the positive terminal of the battery. Wire A1A is 10 ga. black and runs to the 'Batt.' stud on the starter relay where it is held by a nut. The big red wire goes directly to the post on the starter. That post is 'hot' as long as the battery is connected.

Starter relay and bulkhead connector.
From the 'Batt' stud, the power continues on A1B which is a 16 ga. dark blue wire with tracer. That's the fusible link that provides power throughout the car except for the horns. The small wire (H1 16 ga. violet) provides power to the horn relay. Thus the horn relay always has power whether the ignition key is on or not (as long as the battery is connected). Wire A1B goes into the car through "Z" on the firewall bulkhead connector. It's hard to tell where "Z" is but it seems to be on the bottom left of the connector. The big brown wire is connected to the solenoid stud in the center of the relay and from there connects to the solenoid terminal on the start. The two smaller wires power the relay from the ignition switch start position and ground through the Park/Neutral transmission switch.

Ammeter Wires
From "Z" inside the car, A1, a 12 ga. red wire, connects to the Batt. stud on the ammeter. The ammeter studs are 'hot' if the battery is connected. Always disconnect the battery when working around the ammeter (as in pulling the instrument panel). Don't risk a short to the metal dash; it could start a fire and burn up all the dash wiring.
From the Alt. stud on the ammeter wire R6A, 12 ga. black, goes to a splice and continues as R6 to the "B" terminal in the bulkhead connector. Other wires from the splice branch out to supply power to lights, etc. The red and the black wires above the radio knob are the ammeter wires.


Alternator Connection
Finally, wire R6 - 12 ga. black - goes from "B" on the bulkhead connector on the firewall directly to the Batt. stud on the alternator. This stud is also 'hot' whenever the battery is connected. Be careful not to short your wrench between the stud and and metal on the engine, brackets, or body. The battery doesn't discharge through this stud unless one or more of the diodes has shorted out.

Now to the power for the alternator field winding. The green wire is R3. It's 18 ga. dark green and connects directly to the FLD terminal on the voltage regulator and supplies power to the alternator field winding. As shown in this photo, this end of the wire comes out of the wiring bundle on the right and loops back to the field terminal on the alternator.

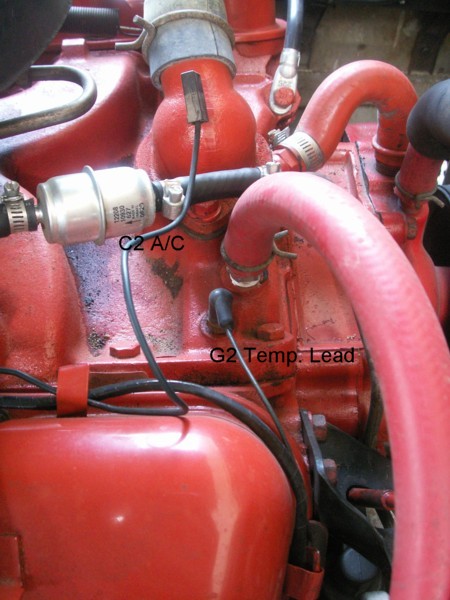

Temperature sensor lead and A/C power lead.
Bundled with the two alternator wires at the front passenger side of the engine are the temperature sensor wire and the A/C compressor power wire. I don't have the compressor on the engine yet.

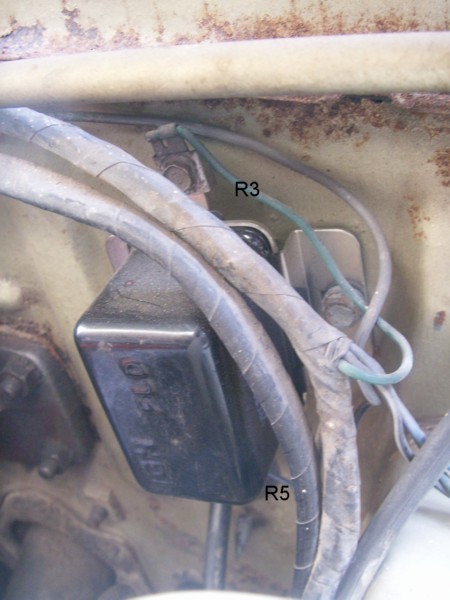

Voltage Regulator
The field wire from the alternator connects to the FLD terminal on the top of the voltage regulator which provides the proper volgage for the alternator field winding. From the IGN at the bottom of the regulator wire R5, 18 ga. Drk Blue, connects to th inlet side of the coil resistor. This voltage reglator has electronics inside instead of the coils and switches of a mechanical regulator. The outside and the connections look like the original, but it works much better.


ICoil Resistor Wiring
Wire R5 from the regulator and J2, the 16 ga. Drk Blue wire w/tracer connect at the terminal on the passenger's side of the coil resistor. In this photo the coil resistor has been bypassed to provide a full 12 volts to the electronic module in the distributer and to the high power coil. J2 goes back to "Q" on the bulkhead connector and then continues inside the car to connect to the ignition switch "Run" position. Power for the ignition switch comes from the splice in R6A previously mentioned.
